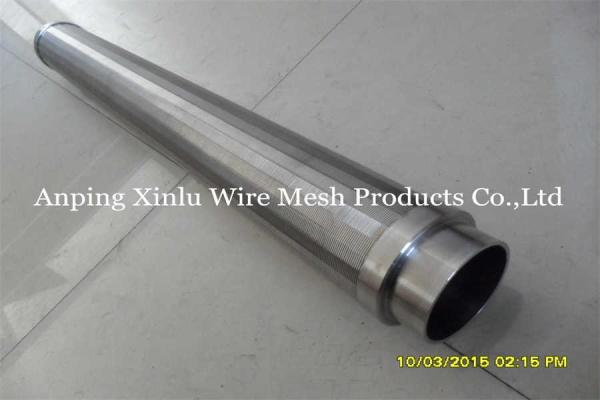

Slot 0.05mm / 50 micron Wedge Wire Mesh Soomth Johnson Screen Pipe For Water Beer Treatment
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens
Wedge wire screen also be named Vee-Wire screen pipe.Continuous slot Vee-wire screen tube ,Wire wrapped screen ,Wire wound screen ,water filter .It is made up of Vee-shaped wrapped wire and round rod in each intersection welded together. Accurate slot and high filtration precision.
Wedge wire screen Size information:
Material : stainless steel wire.Such as: SS304, SS201, SS316L etc.
Diameter : 25-1300 mm ,can make as customers request.
Slot: 0.02-100mm
Length :10-4000mm
End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.
| Material | Stainless steel 304, 316, 316L |
| Diameter | 50mm-6000mm |
| Shape | Cylindrical |
| Slot | 0.02-100mm |
| Thickness | 4-10mm |
| Feature | Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells |
| Application | --Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio |
Wedge Well Screen Specification list:
Size
(Inch) | O.D
(mm) | Slot
(Inch) | Length
(Ft) | Collapse Strength
(PSI) | Tensile Weight
(ton) | Wire size
(mm) | Support Rods (mm) |
| 4-1/2 | 114.3 | 0.040 | 10 | 395 | 6 | 2.2x3.5 | 3.0mm/22 |
| 4-3/4 | 120.6 | 0.040 | 10 | 395 | 6 | 2.3x3.5 | 3.8mm/22 |
| 6-5/8 | 168.3 | 0.040 | 10 | 252 | 8 | 2.3x3.5 | 3.8mm/32 |
| 8-5/8 | 219.1 | 0.010 | 10 | 399 | 10.5 | 3.0x4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.020 | 10 | 370 | 10.5 | 3.0x4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.040 | 10 | 323 | 10.5 | 3.0x5.0 | 3.8mm/48 |
| 10-3/4 | 273.1 | 0.010 | 10 | 206 | 11 | 3.0x5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.020 | 10 | 191 | 11 | 3.0x5.0 | 3.9mm/55 |
| 10-3/4 | 273.1 | 0.040 | 10 | 167 | 11 | 3.0x5.0 | 4.0mm/60 |
Wedge Wire Screen Characteristics:
1. Wedge Wire Screen has high mechanical strength, can bear large pressure drop.
2. Wedge Wire Screen has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
Wedge Wire Screen Application:
This wedge wire screen is especially applicable for wax oil, asphalt and other high viscosity oil liquid.
Product Tags: 0.05mm wedge wire mesh ; wedge wire mesh johnson screen pipe ; slot 50 micron johnson screen pipe
