89mm Stainless Steel Vee Wire Johnson Screen Pipe Customised For Liquid Filtration
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens
Customised Wedge Wire Filter Screen For Liquid
As wedge wire filter screen manufacturers, Hengyuan ensures its wedge wire filter screen products are available in a wide range of apertures and profiles. This certifies that we provide the highest wear resistance according to your specific application requirements. Our unique manufacturing capability enables us to customise screen panels to suit both wedge wire screen machines and applications.
The profiles of the longitudinal wires determine the shape and size of the downward slot opening and affects the extent to which slots remain open. The combination of materials used in the construction of our wedge wire filter screens make them ideal for all high abrasion and corrosion mineral processing equipment requirements.
We also offer a uniquely designed wedge wire sieve bend screen along with a wide range of application-specific profiles. The sieve bends are manufactured in 430 stainless steel to provide abrasion resistance, although 304 or 316 stainless steel is used for corrosive applications.
Wedge Wire Filter Screen Size information:
Material: Stainless steel wire.Such as: SS304, SS201, SS316L etc.
Diameter : 25-1300 mm ,can make as customers request.
Slot: 0.02-10mm
Length :10-4000mm
End connection:male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.
Filter type:From outside to inside. also can make other type:From inside to outside.
Wire size: 1x2mm, 1.2x2mm, 1.5x2mm, 1.5x2.5mm, 2x3mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm etc.
Support rod: 1.8x2.5mm, 2x3mm, 3x4.6mm, 3x6mm etc.
| Material | Stainless steel 304, 316, 316L |
| Diameter | 50mm-6000mm |
| Shape | Cylindrical |
| Slot | 0.02-100mm |
| Thickness | 4-10mm |
| Feature | Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells |
| Application | --Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio |
Wedge Well Screen Specification list:
Size
(Inch) | O.D
(mm) | Slot
(Inch) | Length
(Ft) | Collapse Strength
(PSI) | Tensile Weight
(ton) | Wire size
(mm) | Support Rods (mm) |
| 4-1/2 | 114.3 | 0.040 | 10 | 395 | 6 | 2.2x3.5 | 3.0mm/22 |
| 4-3/4 | 120.6 | 0.040 | 10 | 395 | 6 | 2.3x3.5 | 3.8mm/22 |
| 6-5/8 | 168.3 | 0.040 | 10 | 252 | 8 | 2.3x3.5 | 3.8mm/32 |
| 8-5/8 | 219.1 | 0.010 | 10 | 399 | 10.5 | 3.0x4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.020 | 10 | 370 | 10.5 | 3.0x4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.040 | 10 | 323 | 10.5 | 3.0x5.0 | 3.8mm/48 |
| 10-3/4 | 273.1 | 0.010 | 10 | 206 | 11 | 3.0x5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.020 | 10 | 191 | 11 | 3.0x5.0 | 3.9mm/55 |
| 10-3/4 | 273.1 | 0.040 | 10 | 167 | 11 | 3.0x5.0 | 4.0mm/60 |
Wedge Wire Screen Application:
This wedge wire screen is especially applicable for wax oil, asphalt and other high viscosity oil liquid.
Product Tags: 89mm vee wire filter screen ; customised vee wire filter screen ; liquid wedge wire filter screen pipe
|
|

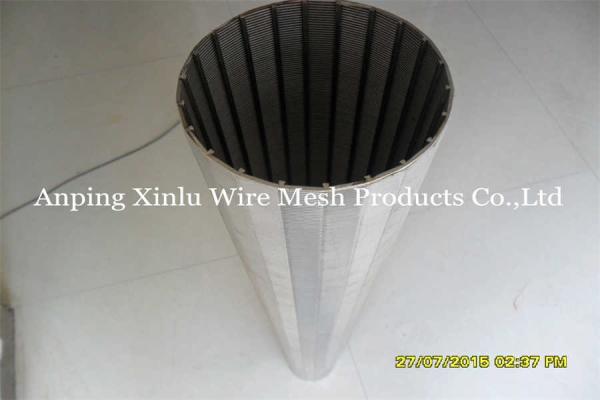

89mm Stainless Steel Vee Wire Johnson Screen Pipe Customised For Liquid Filtration Images
|
